SC90 Satellite Compass
Marinelite Satellite Compass
High precision and Stability
Precise orientation; Beidou/GPS dual-star system with faster directional speed; Advanced speed and course filtering technology to make the data more stable.
Built-in gyro compensation system has better performance.
Built-in high-precision inertial navigation module, when the satellite navigation signal is weak or temporarily lost, the heading can keep 1min of compensation output without interruption; It has the characteristics of fast start, signal recapture, heading update up to 20 times per second, and can operate at a continuous turning rate of up to 90° per second.
The display instrument is light-weight design, partial to installation, and multiple display modes are available; Compared with gyro compass, basically no maintenance.
Key Features
- Pre-type carrier phase decoding technology for precise orientation
- Beidou/GPS dual-system support for faster directional acquisition
- Advanced filtering technology for stable speed/course data
- Built-in gyro compensation system for superior heading performance
- Ultra-fast 50Hz heading updates with 90°/s turning rate capability
- Multi-channel NMEA0183 output for marine navigation systems integration

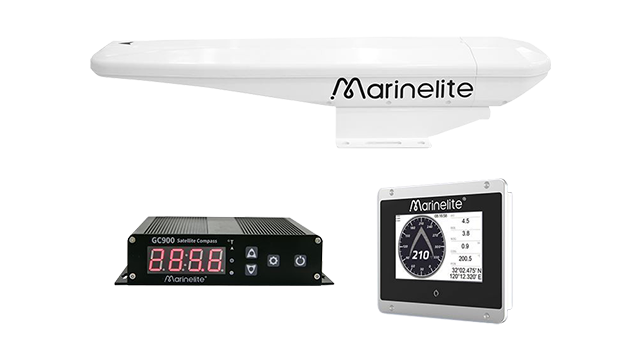

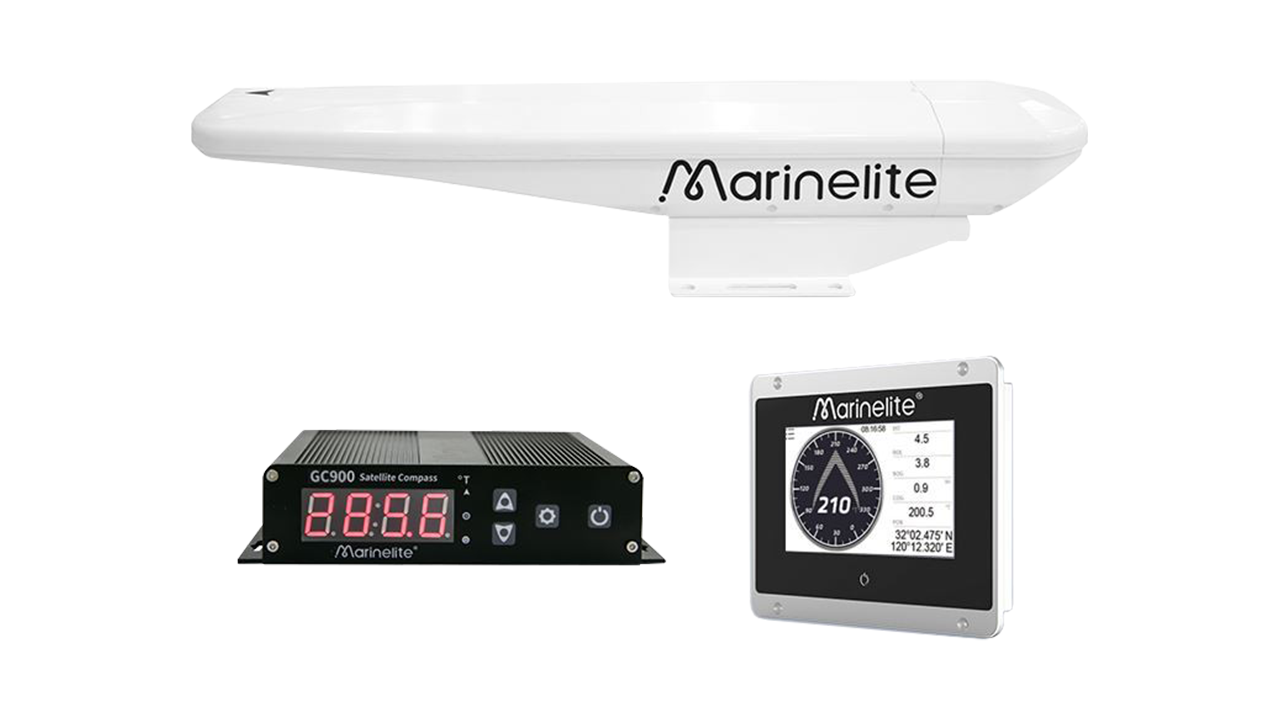

Scope of Supply
- GPS COMPASS ANTENNA (SC901)
- Display Unit (SC902)
- Control Unit (SC900) 11~36 VDC
- Installation Material
